Automatic Brinell Hardness Tester Machine Model HBZ-3000A

Name: Automatic Brinell Hardness Tester Machine Model HBZ3000A
Brand: SAMYON
Price: 1 USD

Brand Name : SAMYON

Model Number : HBZ-3000A

Certification : ISO

Place of Origin : CN

MOQ : 1set

Price : Can be negotiated

Payment Terms : Western Union, MoneyGram, , T/T, D/P, D/A

Supply Ability : 100sets per week

Delivery Time : 3-5days

Packaging Details : Wooden case

Name : Hardness tester

Standard : ISO 6506-2:2017

Test force : 7355.3, 9807

Measuring range : 32-650HBW

Depth of throat : 170mm

Max sample height : 450mm

Contact Now

Model Hbz-3000a Automatic Brinell Hardness Tester

Application:

It is mainly used to determine the Brinell hardness of unquenched steel, cast iron, non-ferrous metals and soft bearing alloys, etc. It is especially suitable for on-line & on-spot determining of the hardness of test pieces in large batches.

Standard:

ASTM E10-2018 Standard Test Methods for Brinell Hardness of Metallic Materials

ISO 6506-2:2017 Metallic materials - Brinell hardness test - Part 2: Verification and calibration of testing machines

GB/T 231.2-2012 Metallic materials - Brinell hardness test - Part 2: Verification and calibration of testing machines

Parameters:

Item	Name	Details
1	Test force	7355.3, 9807, 29421N (750, 1000, 3000kgf)
2	Measuring range	32-650HBW
3	Depth of throat	170mm
4	Max. height of test piece	450mm
5	Dimension	920 x 720 x 1760mm
6	Weight	approx. 900kg
7	Power	380V AC, 50 or 60Hz

Features:

1. Precision conforms to GB/T 231.2, ISO 6506-2 and ASTM E10

2. The attached printer can automatically print out the hardness testing result

3. Automatic testing process, high precision optical grating measuring system, automatic digital display, no human operating & reading errors

Standard accessories:

Flat anvil: 1 pc.

V-notch anvil: 1 pc.

Tungsten carbide ball penetrator: Φ5, Φ10mm, 1 pc. each

Brinell standardized block: 2 pcs.

20X Readout microscope: 1 pc.

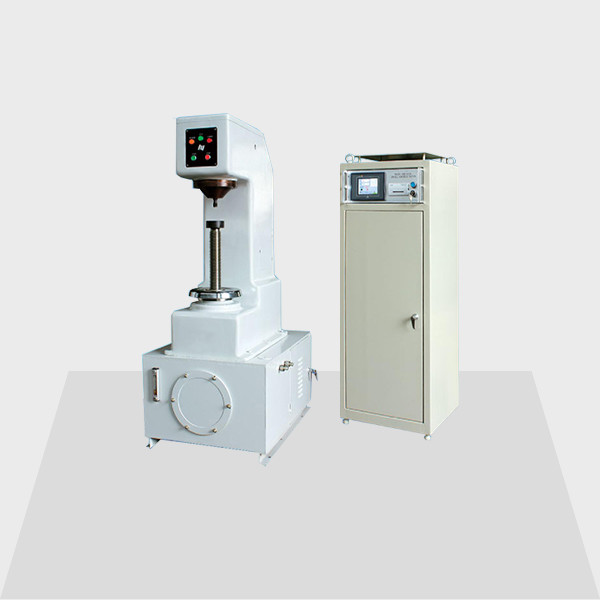

Automatic Brinell Hardness Tester Machine Model HBZ-3000A
